Boring the Cylinders

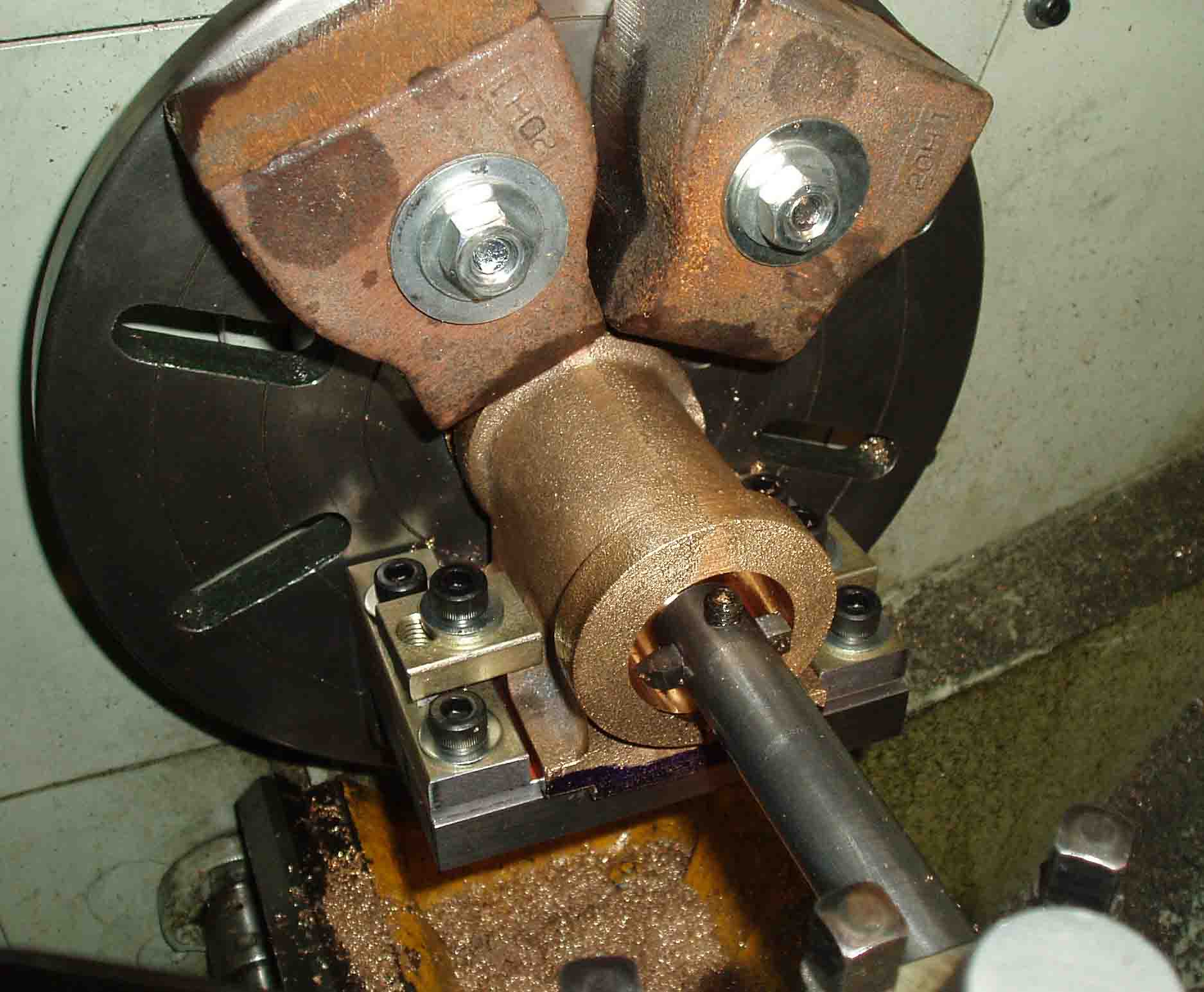

Cylinders were bored in the lathe,
they were mounted on an angleplate which was bolted to the faceplate.
Large ballance weights were used to balance the arrangement
A plug gauge was made prior to boring to ensure that both bores were the same.
A homemade boring bar with a HSS tool was used for boring.
