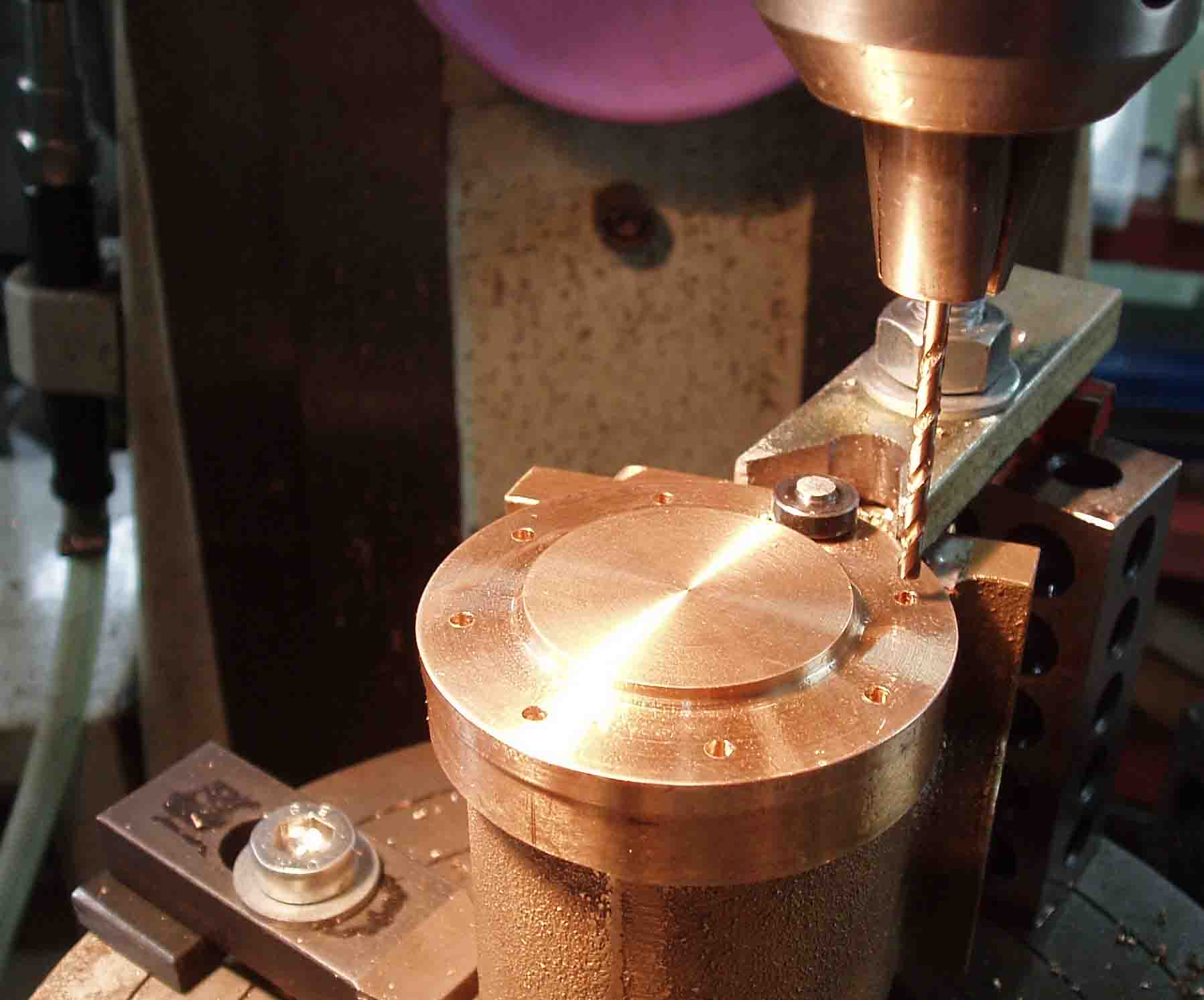

Drilling the Cylinders for the Covers

The Cylinder ends were drilled on a rotary table,
a flat "joining" plate was used to locate the cylinder in the jig used to drill the end covers
a pin was inserted into the first hole drilled to ensure the cover did not rotate during drilling.
